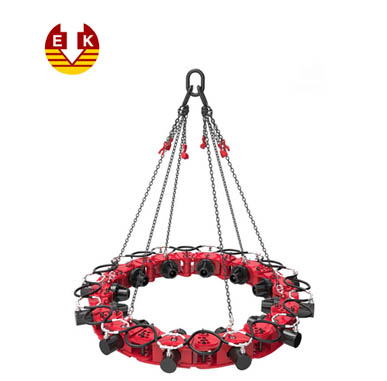

Pile breaker Current Location：Home >> Pile breaker
| Pile breaker |
|
|
Performance based on 12pcs of modules
|
|
Model
|
EK606
|
|
Pile diameter
|
D1700-D1850mm
|
|
Max drill rod pressure
|
690KN
|
|
Hydraulic cylinder max stroke
|
180mm
|
|
Hydraulic cylinder max pressure
|
34.3Mpa
|
|
Single cylinder max flow
|
25L/min
|
|
Number of piles/8h
|
50-100
|
|
Height of each pile cut
|
min 300mm
|
|
Recommened excavators
|
at least 35t
|
|
Weight of each module
|
280kg
|
|
Size of each module
|
910*680*380mm
|
|
Total weight
|
3.7t
|
|
