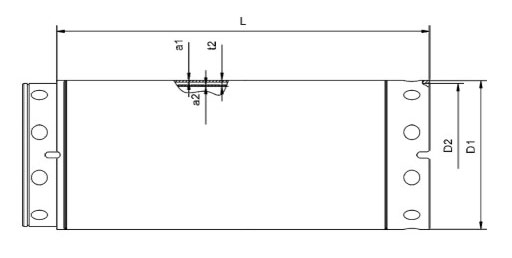

Single wall casings may be used for reasons of weight reduction after checking the compatibility
with heavy duty oscillators.
|
D1/D2
|
1m
|
2m
|
3m
|
4m
|
5m
|
6m
|
a1
|
a2
|
t2
|
bolt
|
|
(mm)
|
Weight(Kg) Parts Number
|
(mm)
|
(mm)
|
(mm)
|
(Nos)
|
|
620/540
|
403
|
739
|
1074
|
1411
|
1747
|
2081
|
12
|
8
|
40
|
8
|
|
750/670
|
492
|
902
|
1311
|
1722
|
2131
|
2540
|
12
|
8
|
40
|
10
|
|
880/800
|
585
|
1069
|
1552
|
2036
|
2520
|
3005
|
12
|
8
|
40
|
10
|
|
1000/920
|
669
|
1221
|
1773
|
2328
|
2877
|
3429
|
12
|
8
|
40
|
10
|
|
1180/1100
|
844
|
1580
|
2316
|
3052
|
3787
|
4522
|
16
|
8
|
40
|
12
|
|
1200/1120
|
872
|
1620
|
2370
|
3120
|
3870
|
4620
|
16
|
8
|
40
|
12
|
|
1300/1220
|
933
|
1746
|
2558
|
3372
|
4184
|
4996
|
16
|
8
|
40
|
12
|
|
1500/1400
|
1433
|
2628
|
3817
|
5009
|
6210
|
7393
|
20
|
10
|
50
|
12
|
|
1800/1700
|
1730
|
3166
|
4602
|
6038
|
7474
|
8910
|
20
|
10
|
50
|
12
|
|
2000/1880
|
2450
|
4280
|
6110
|
7940
|
9770
|
11600
|
20
|
15
|
60
|
12
|
|
2200/2080
|
2700
|
4720
|
6740
|
8760
|
10780
|
12800
|
20
|
15
|
60
|
12
|
|
2500/2380
|
2960
|
5240
|
7520
|
9800
|
12080
|
14360
|
20
|
15
|
60
|
16
|
|
